Grooved Machine Bed Extrusion

Grooved Machine Bed Extrusion

Regular price $19.90 Sale

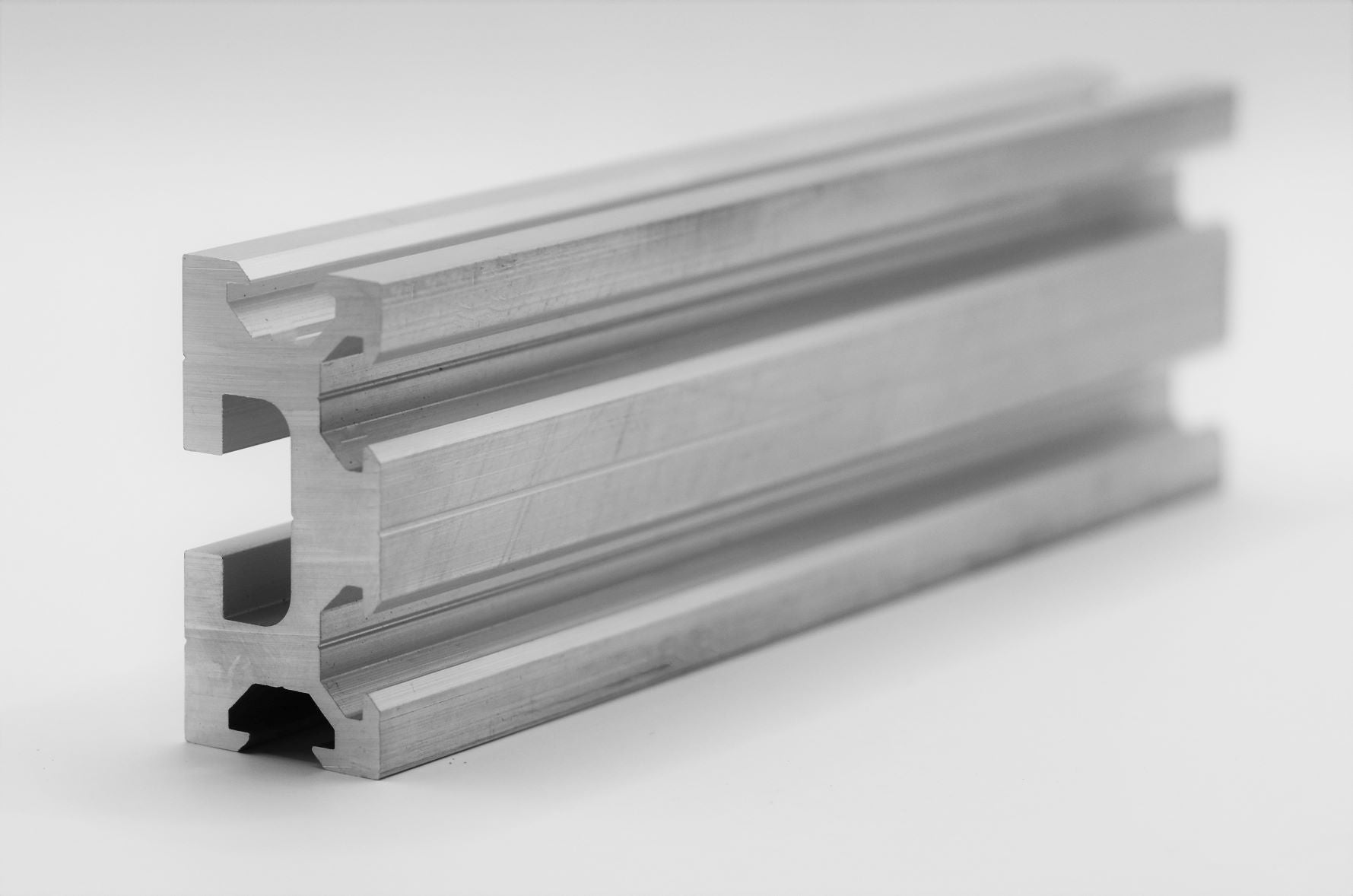

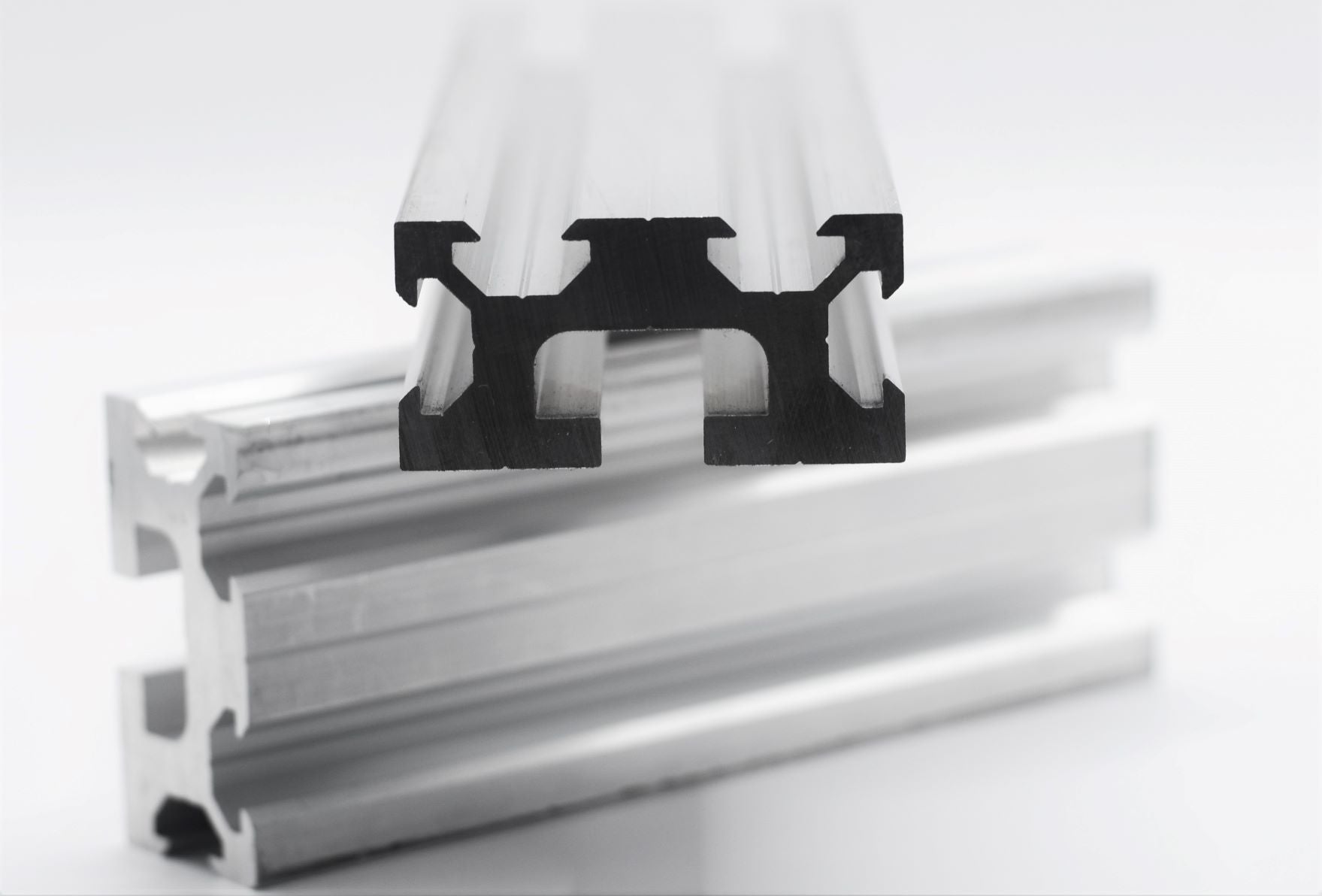

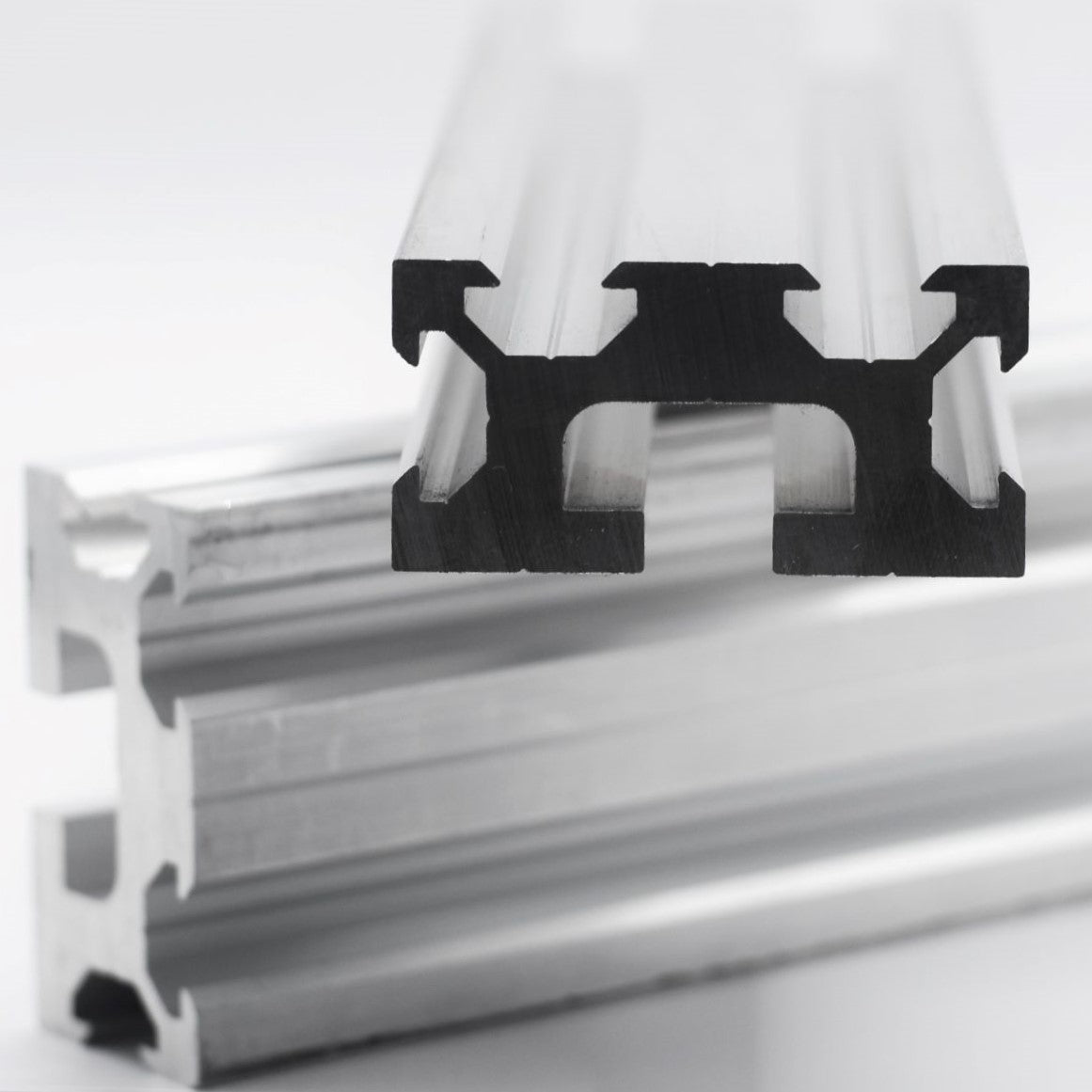

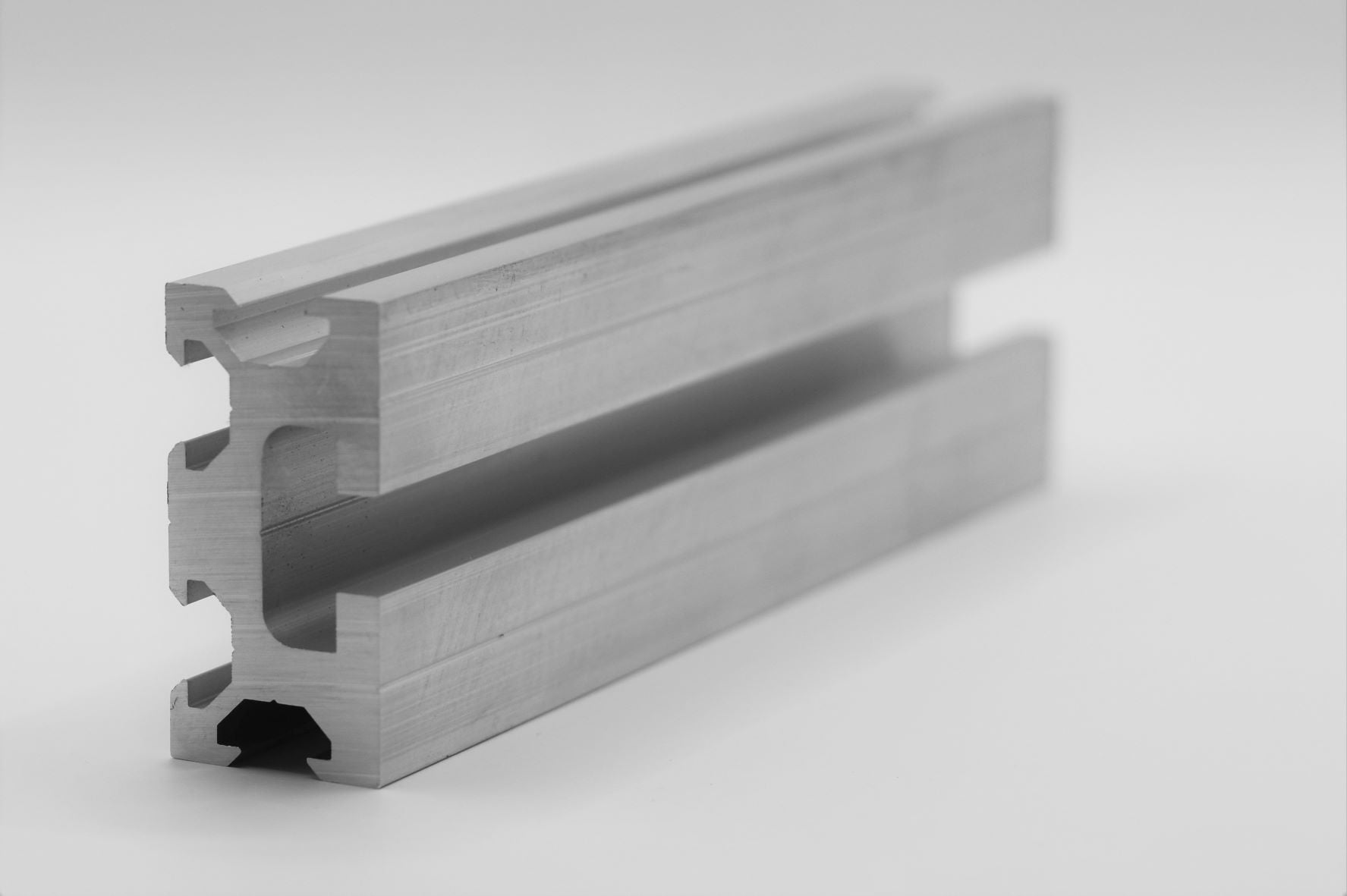

This little section was developed by us for making adaptable machine & fabrication  beds.

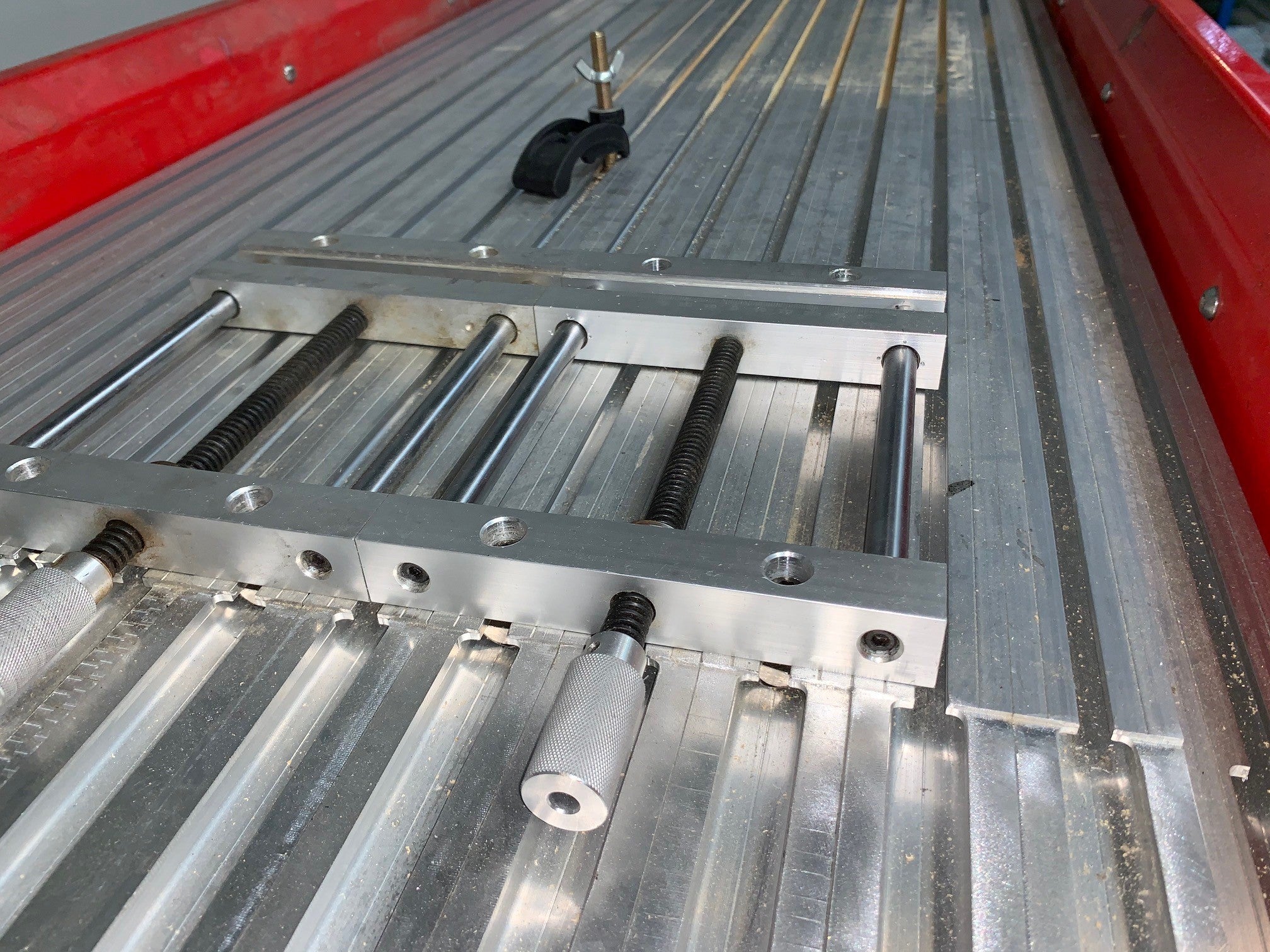

Its ideal for CNC routers, Engravers and whatever else you can dream up.

One face is designed to take our standard 40 series spring nuts, Tee bolts or Clamps. The other face and sides take our 20 series hardware.

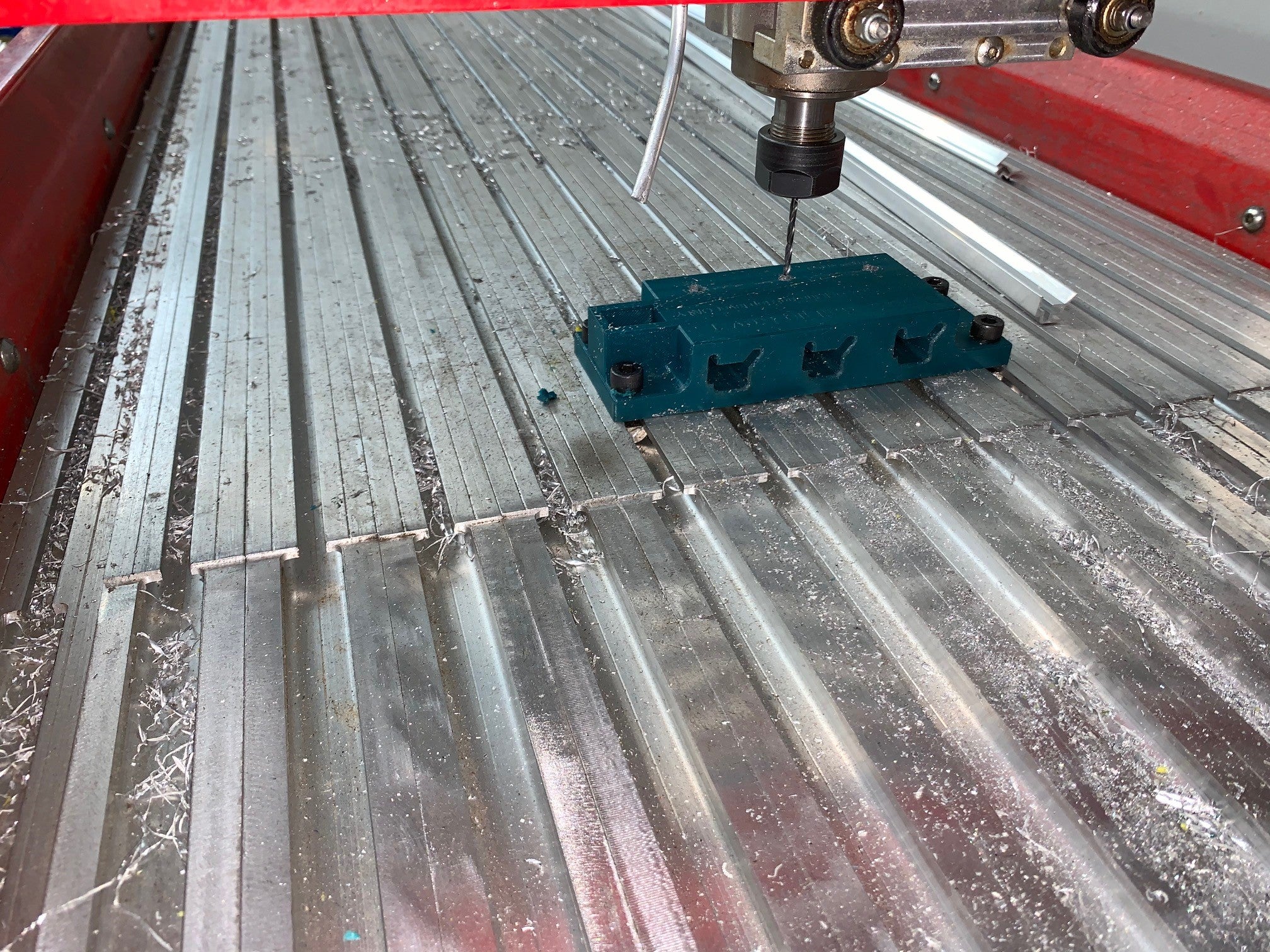

The 40x20 machine bed is supplied in a mill finish (not anodised like our other extrusions). Being raw finish also makes it possible to mill the surface perfectly flat on router beds and keeps costs down.

Cut lengths longer than 1600mm must be sent by heavy freight, not standard courier ($65 for North Island and $75 for South Island addresses). Shorter cut lengths can be sent by courier at much lower rates.

Aluminium extrusion can be cut successfully with a standard builders drop saw or mitre saw. Make sure you have a sharp (new) fine tooth blade, and use light oil, CRC or kerosene to ensure a clean cut. Alternatively we can cut to your required length- see Custom Cutting

Note this profile has occasional perpendicular lines/blemishes present.   These lines are at random, and are part of the way we have managed to keep the cost on this profile down.

CAD Files:

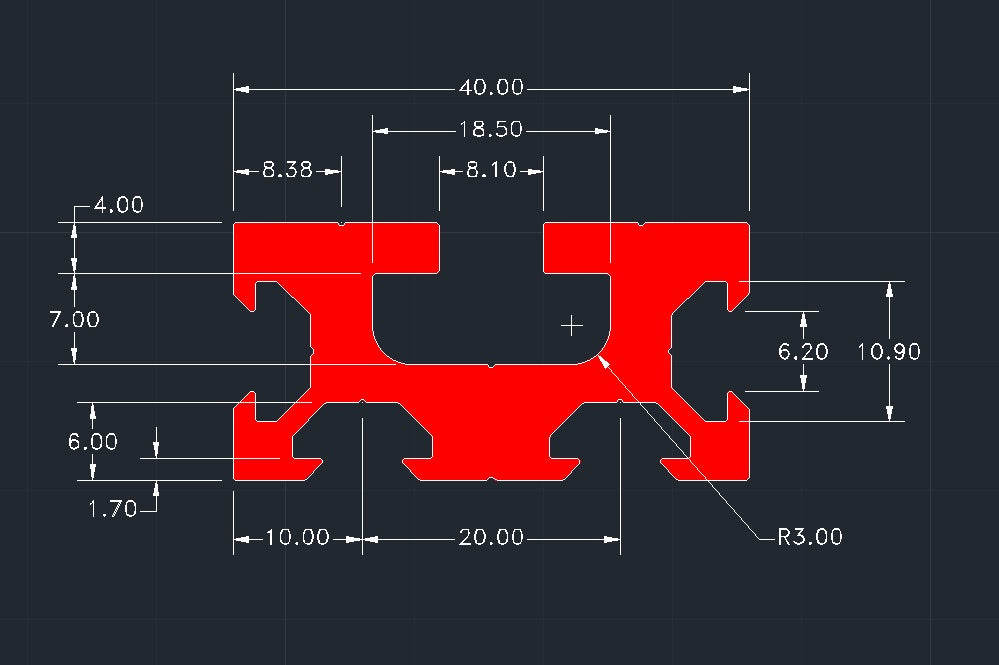

DXF Profiles: AluminiumExtrusionCoVSlot.DXF

Deflection Calculator:

Microsoft Excell file: AEC Deflection Calculator.xls
