40x80 Aluminium T-Slot / V-Slot Extrusion – 40 x 80 mm, BLACK Anodised, NZ Made

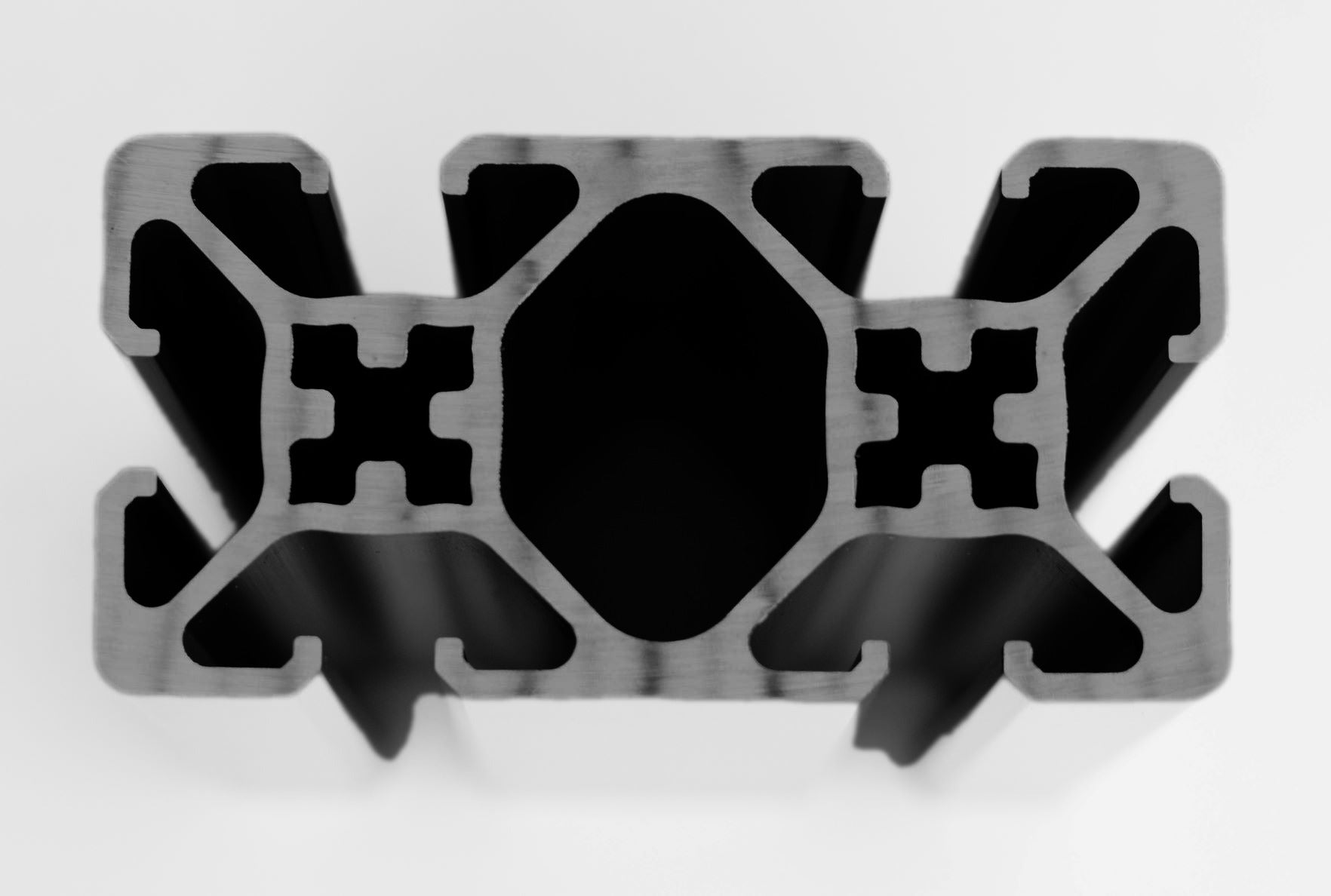

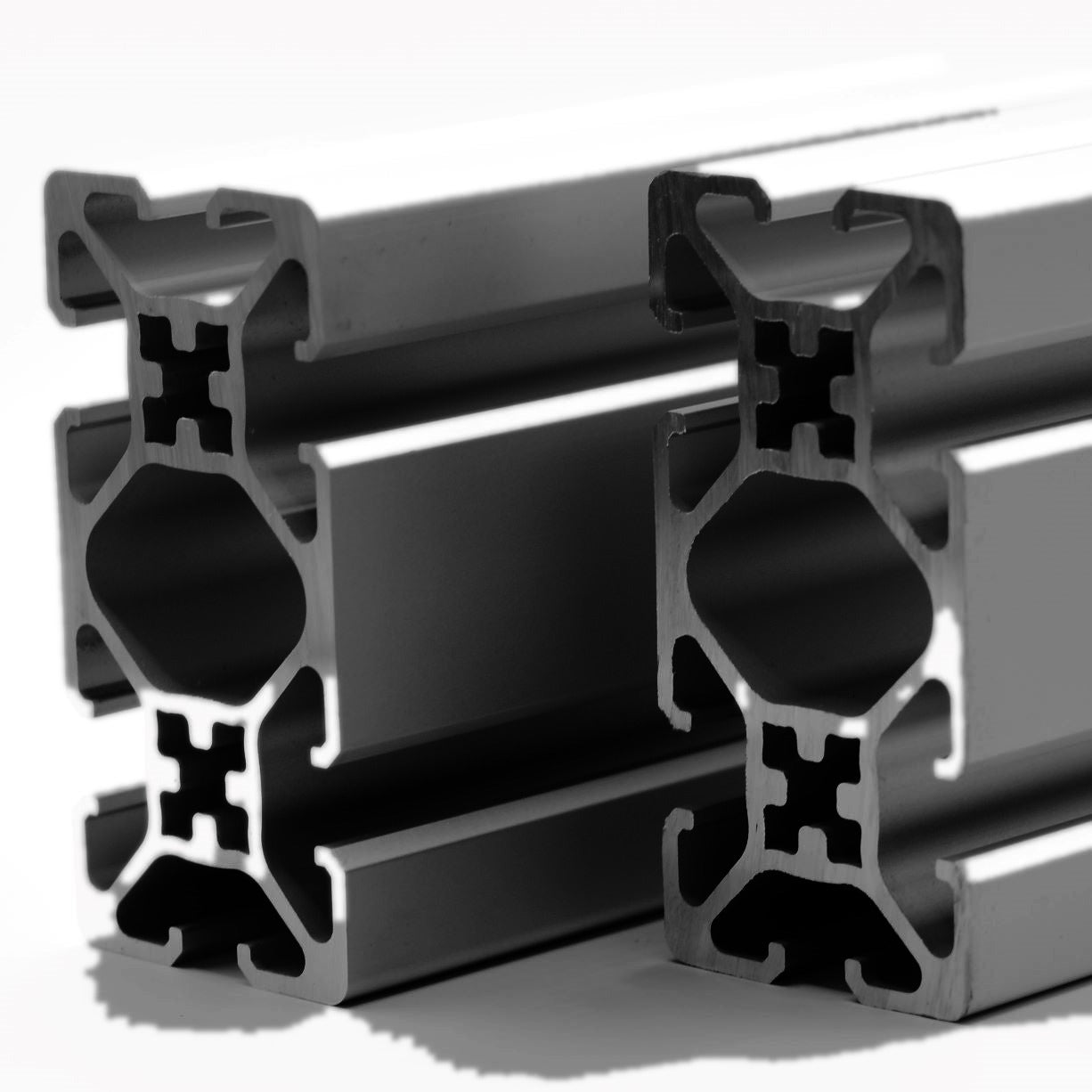

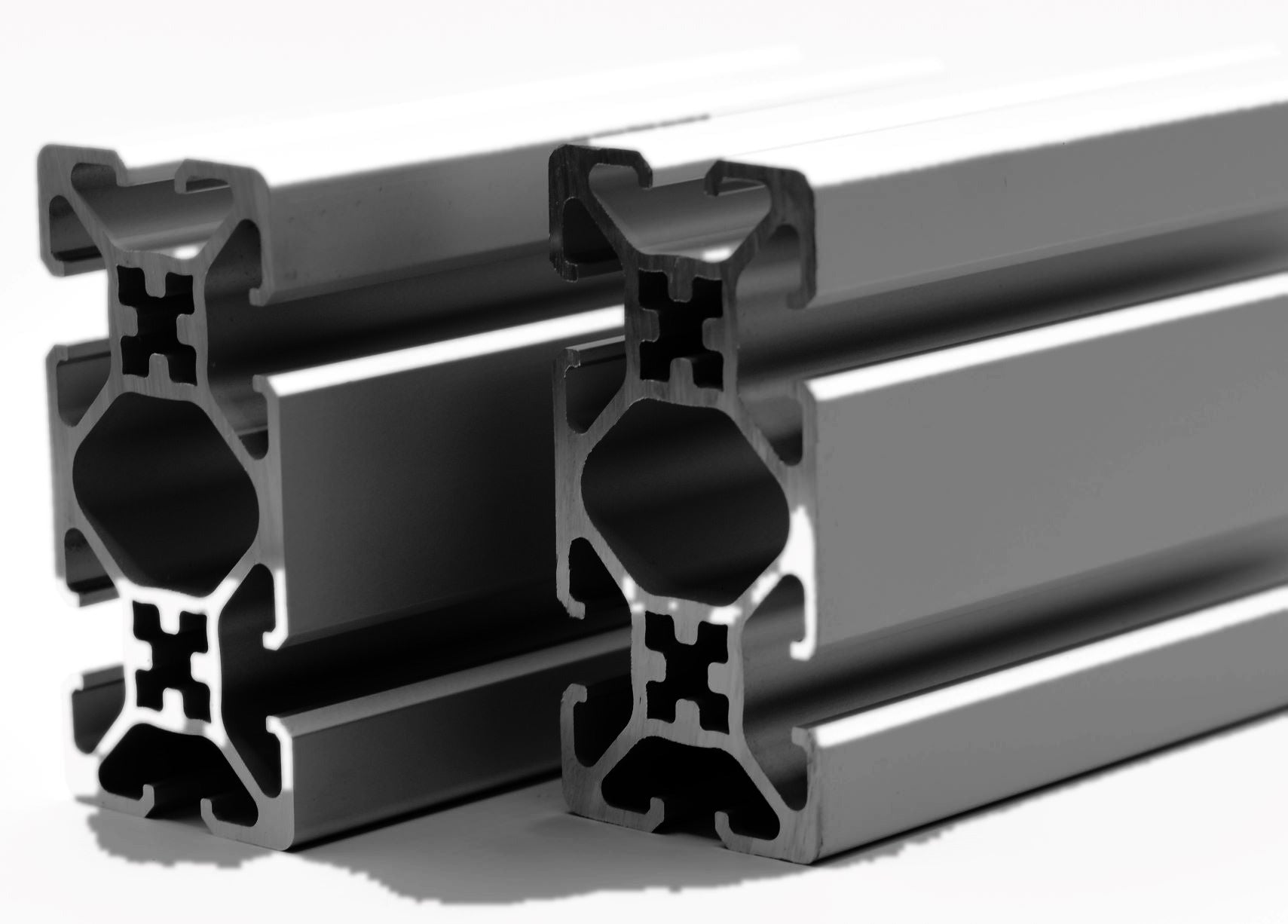

40 x 80 mm aluminium T-slot / V-slot extrusion BLACK— 100% designed and made in New Zealand. A heavier 40 Series section for spans, gantries and structural framing.

• Series: 40 Series
• Material: 6060 aluminium
• Slot: 8 mm T-slot
• Centre hole: tap to M8 or M10 with a standard metric or spiral tap
• Finish: mill, BLACK satin anodised, o
• Lengths: 2415 or 3000 mm

Slot edges are chamfered to suit V-slot (Openbuilds-style) wheels, so the profile takes both standard T-slot fasteners and V-slot motion components.

Jig marks: This is manufactured as an industrial product. Some pieces will have jig marks from the anodising process up to 50 mm from each end, and these are more visible on black. Leaving these ends on rather than cutting them off as scrap minimises waste and keeps the cost down. The marks can usually be orientated to a non-visible position in your build. If your project needs an absolutely perfect surface, allow an extra 50 mm at each end when ordering and trim to length as required. We are unable to cut around jig marks at the factory.

Common applications: machine safety guarding, machine frames and gantries, workstations, automation and conveyor framing.

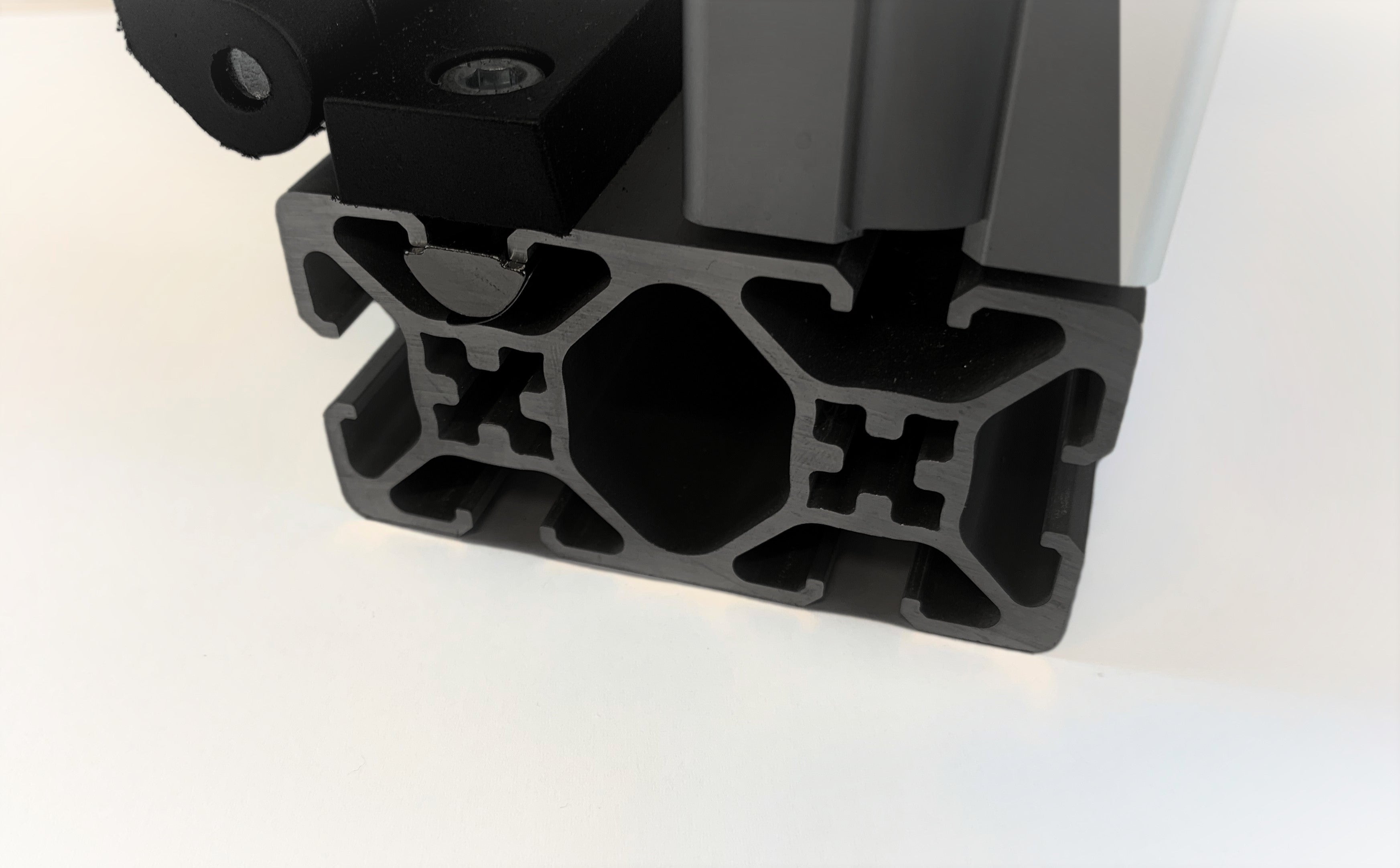

Matching black hardware: our 40 Series corner brackets and heavy-duty corner brackets are available powder-coated black to match this extrusion.

CAD file: Aluminium Extrusion Co V-Slot profiles (DXF)
Deflection calculator: AEC deflection calculator (Excel) — work out how the profile will perform in your application.

Cuts cleanly with a sharp fine-tooth drop or mitre saw (use light oil, CRC or kerosene), or we cut to length for you to +/- 0.5 mm (100–3000 mm). Lengths up to 1600 mm ship by standard courier, up to 2400 mm by oversize courier, longer by freight. (Note: custom-cut pricing shows at checkout, not in the cart.)
